We assemble your circuit boards to spec. Send the design files, we handle the rest.

PCB Assembly,
SMT Assembly,
Embedded Software,
Component Sourcing

In-house SMT line, AOI on every board, firmware loaded on the line.

Request a Quote See the Production Line

Portfolio

Products we have built on our line

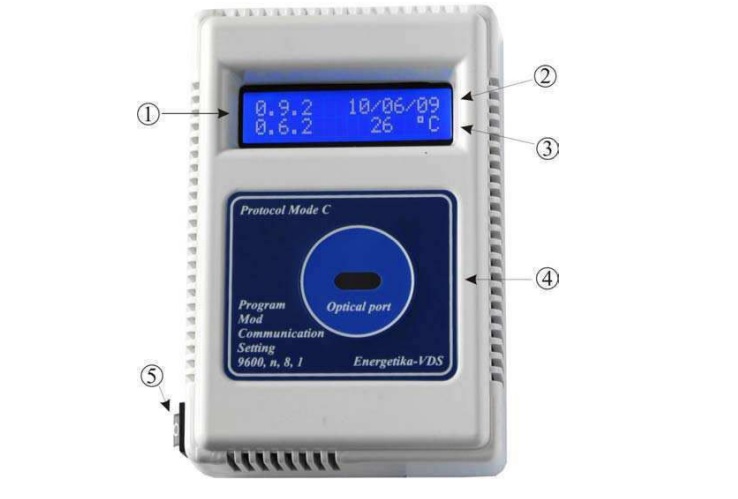

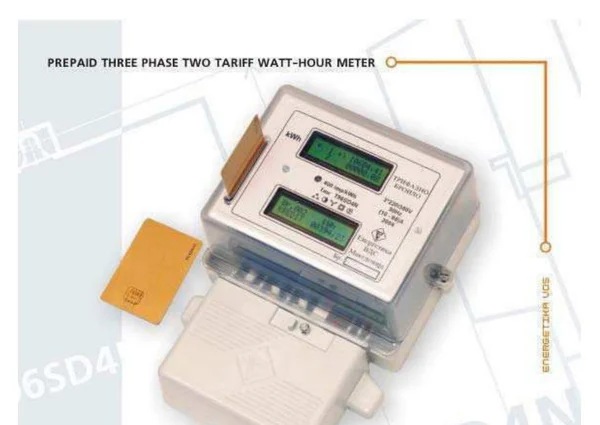

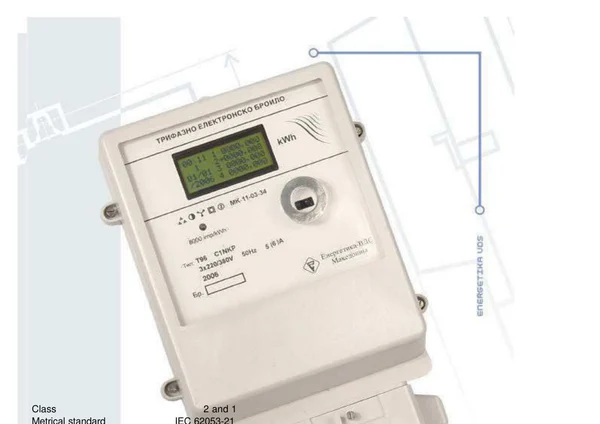

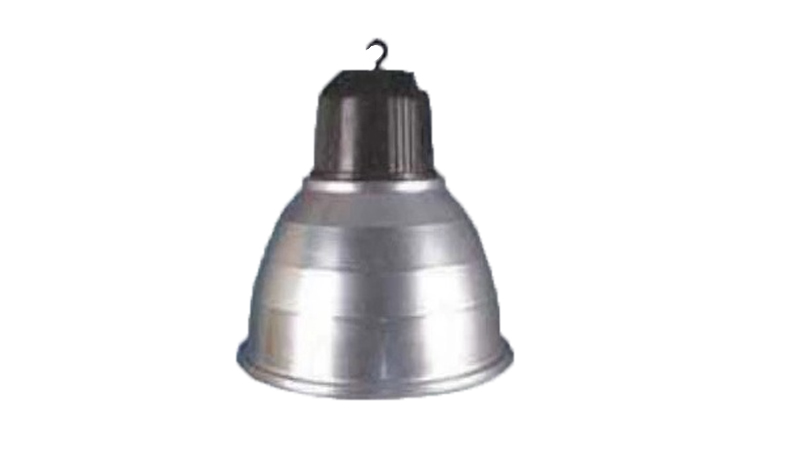

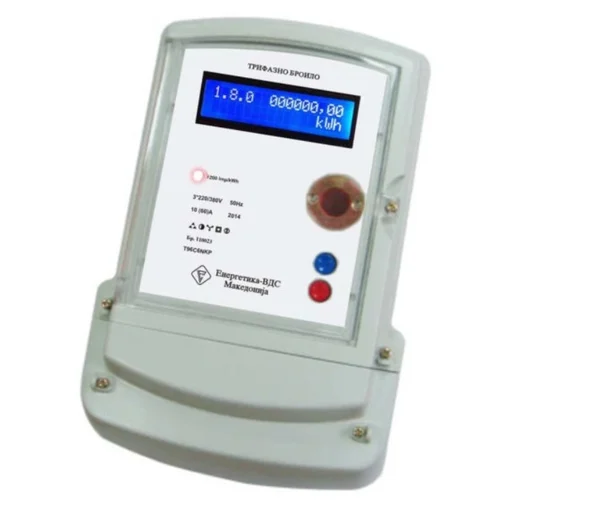

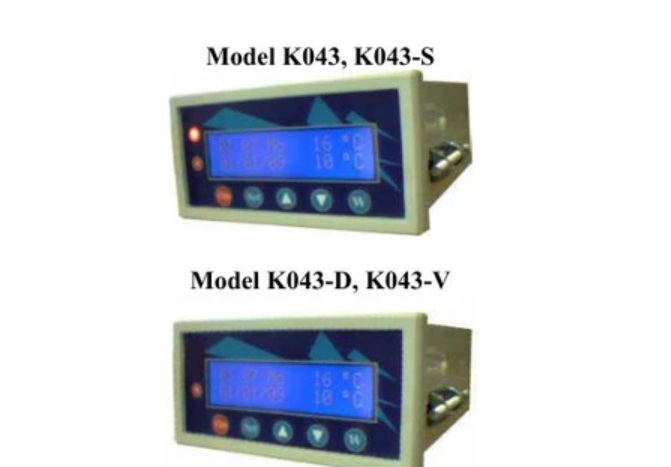

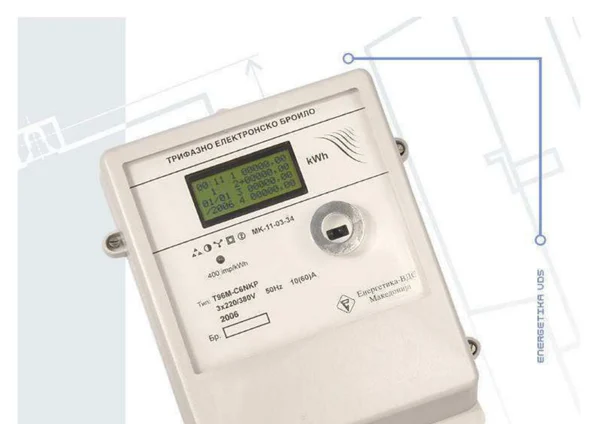

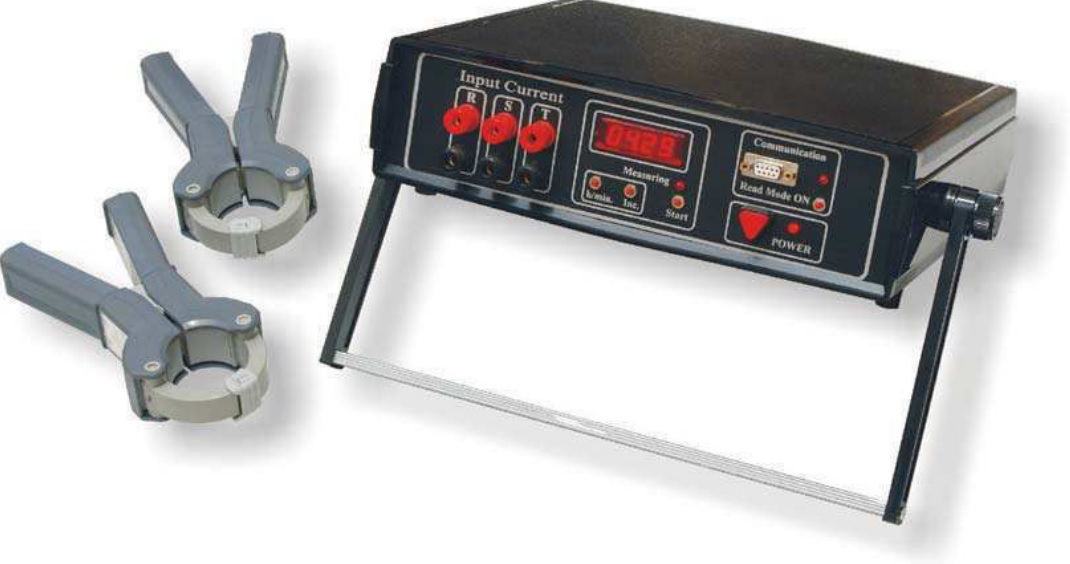

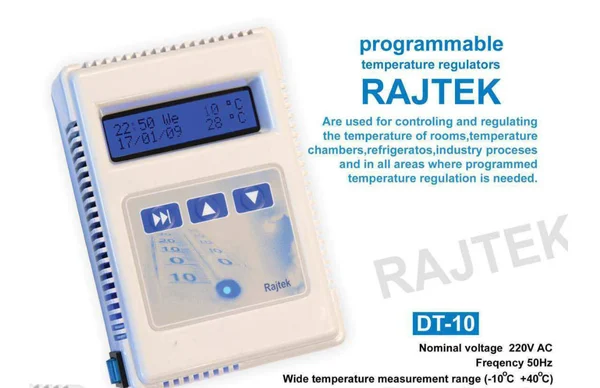

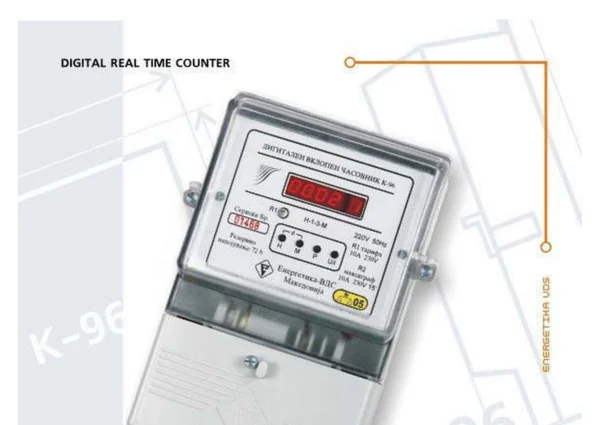

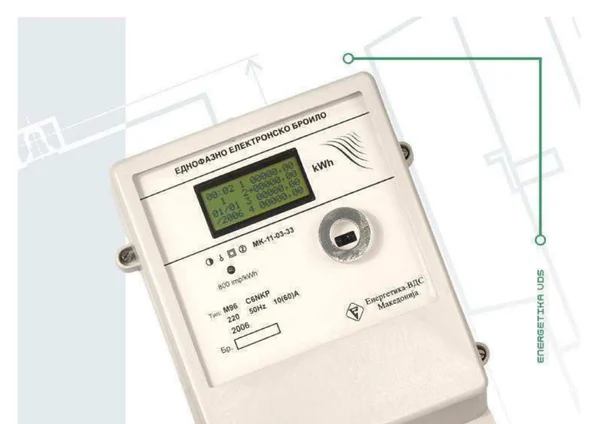

A rotating sample of devices we build in-house at Energetika-VDS: billing meters, instruments, controllers, industrial lighting. Each card is a real shipping product, not a stock photo.

Browse the full portfolio

How we build

The Novastar SMT line that ships these products

Bare board in, finished PCBA out. The same three machines run every job, every day.

Gold Print

DDM Novastar SPR-45

Solder paste stencil printer

  • Max board width310 mm
  • Stencil frameup to 23 by 23 inch
  • Print area16 by 18 inch
View capability

Gold Place

DDM Novastar LS60

Pick-and-place machine

  • Board size330 to 343 mm by 304 to 813 mm
  • Throughputup to 4800 cph (typical 2500 to 3600)
  • Component range0201 to 35 mm bodies, BGA, 15 mil pitch QFP
View capability

Gold Flow

DDM Novastar GF-120HT

Reflow soldering oven

  • Conveyor width305 mm
  • Heated tunnel1042 mm
  • Heating zones3 top + 3 bottom (horizontal convection)
View capability

Core services

Four services, one production line

PCB assembly, SMT, embedded software, and component sourcing on an in-house line. Pick the scope that fits your product.

PR

PCB Assembly

Surface-mount and through-hole PCB assembly on an in-house SMT PCB production line, with AOI in-house and firmware loading or sourced functional test on request.

More Info
PR

SMT Assembly

Surface-mount technology assembly on the in-house SMT PCB production line: paste printing, pick-and-place, and reflow.

More Info
VR

Embedded Software

Firmware loaded on the production line, board bring-up, signed boot, per-unit version logging tied to the board serial.

More Info
RT

Component Sourcing

We source against your AVL when your team would rather not chase distributors. Alternates flagged, dual-source identified, lead-time risk surfaced before dates lock.

More Info
PR

Through-Hole Assembly

Selective through-hole assembly when SMT is not the right fit for connectors, large components, or high-current pins.

More Info
PR

Firmware Loading

In-line and offline firmware loading with multi-image support, signed bootloader chains, and per-unit log.

More Info
All Services

Why integrated production

One contract from BOM to inspected board

A real production line, not a benchtop. Solder paste, pick-and-place, lead-free reflow, AOI in-house on every board, and through-hole on the same job when the design calls for it. Firmware loading attaches to the same workflow.

Component sourcing runs in parallel against your AVL. Bring your own parts, or we source them. Either way the BOM locks before paste hits the stencil.

Programmed Inspected Serialized Traceable Production-ready

Manufacturing workflow

From quote to shipment

Every unit moves through defined production, firmware, test, and quality gates.

  1. RFQ INPUT

  2. File review

    BOM, gerbers, CPL reviewed against the in-house line.

  3. BOM review and sourcing

    AVL alignment, alternates flagged, optional sourcing arranged.

  4. Assembly setup

    Stencil, feeders, reflow profile prepared.

  5. Solder paste printing

    Stencil-based deposit on the SPR-45.

  6. Pick-and-place assembly

    Vision-assisted placement on the LS60.

  7. Soldering and reflow

    Six-zone horizontal convection reflow on the GF-120HT.

  8. AOI (in-house)

    AOI runs in-house on every assembled board.

  9. Optional firmware loading

    In-line or offline programming when required.

  10. Sourced functional test

    Coordinated through partner test houses against your test plan when required. Not done in-house.

  11. Box-build and packaging

    Sub-assembly, label after test, packed unit.

  12. SHIPMENT OUTPUT

Industries

Built for connected industrial, building, energy, and IoT products

IoT Device Manufacturing

Connected products with cloud provisioning, OTA firmware, and per-device identity from production.

More Info

Industrial Sensors

Sealed sensor modules with vibration tolerance, calibration data per unit, and IP-rated enclosures.

More Info

Access Control Hardware

NFC and RFID readers, secure-element credential handling, vandal-resistant enclosures.

More Info

HVAC Controllers

Thermostat and zone controller PCBA with relay durability, long product life, and field-firmware-update strategy.

More Info

Energy Devices

Energy meters and monitors with high-current sensing, isolation barriers, and MID-aware design.

More Info

Building Automation

Lighting controllers, sensor nodes, and gateway devices with multi-protocol bus support.

More Info

Second-source manufacturing

Need a parallel European production line?

Reduce single-supplier risk with a second-source line that mirrors your existing production. We accept your BOM, AVL, gerbers, test plan, and signing keys, and start with a pilot batch.

Request a Quote See production transfer

Quality and traceability

Every unit signed off, logged, and traceable

  • IPC-A-610 acceptance criteria

    Class 2 or Class 3 inspection profile applied per project.

  • AOI on every board (in-house)

    Automated optical inspection of placement and joints, on our own line.

  • Per-unit traceability database

    Serial, firmware hash, batch, operator, and machine program logged.

  • Lead-free SAC305 reflow

    RoHS-compliant solder profile across the line.

RFQ requirements

What to send when you request a quote

Minimum

  • BOM with manufacturer part numbers
  • Gerber RS-274X, ODB++, or IPC-2581
  • CPL or pick-and-place file

Helpful additions

  • Assembly drawing
  • Schematic for sourcing alternates
  • Firmware binary and signing key references
  • Test procedure or production test plan
  • Enclosure files for box-build
  • Packaging spec

Portfolio + Engineering

What we have built on our own line

A dozen products we manufacture on our own SMT line: billing meters, instruments, controllers, and lighting. Each is paired with the firmware and PC software we wrote to ship it, and is a real case study of capability you can hire.

Product portfolio

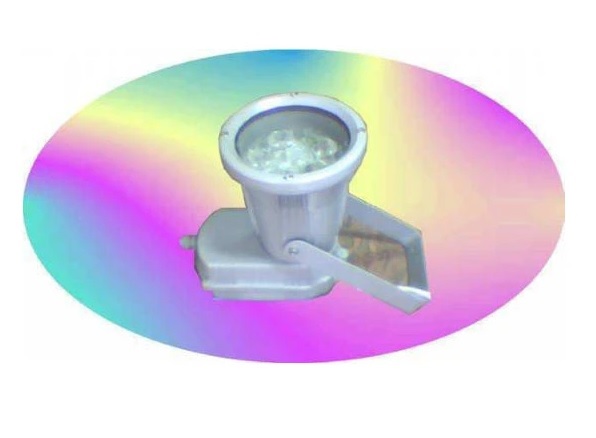

The 12 products we currently build. Electronic meters, temperature controllers, industrial LED, RGB submersible spotlight.

View portfolio

Engineering capabilities

Firmware, PC software, communications hardware, and full systems we designed and built alongside the SMT line.

View case studies

Ready to send files?

Energetika-VDS engineering replies within one business day. NDA available before file exchange.
